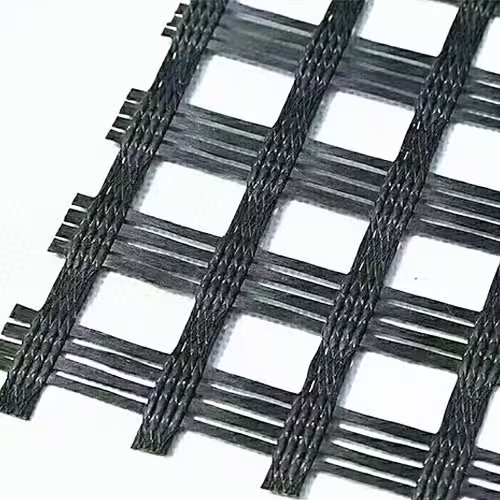

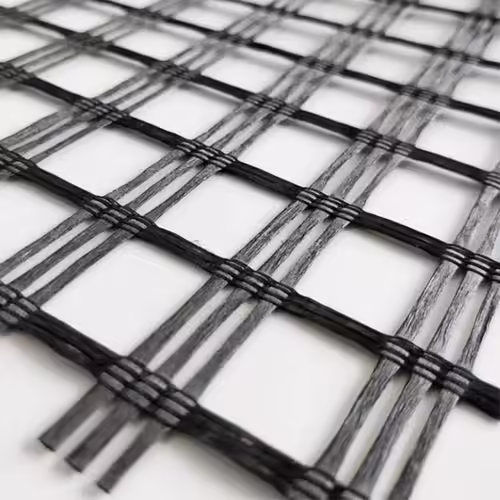

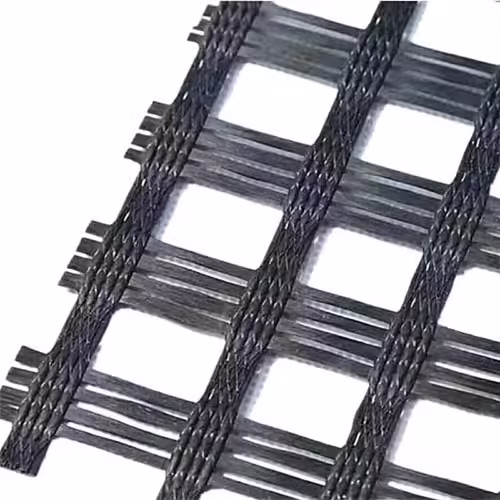

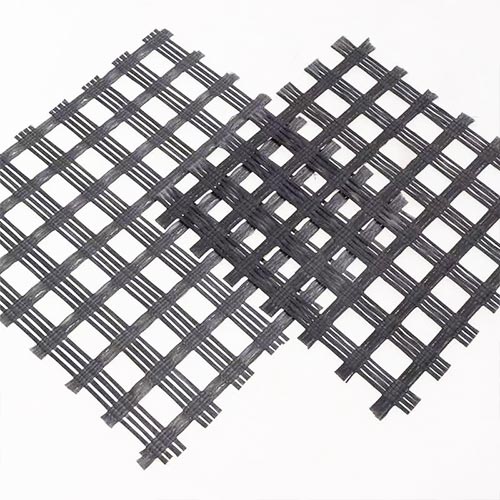

1. Fiberglass Geogrid is an excellent geosynthetic material used for road reinforcement, old road strengthening, and the consolidation of subgrades, including soft soil subgrades.
2. Fiberglass Geogrid has become an irreplaceable material in the treatment of reflective cracks in asphalt pavements.

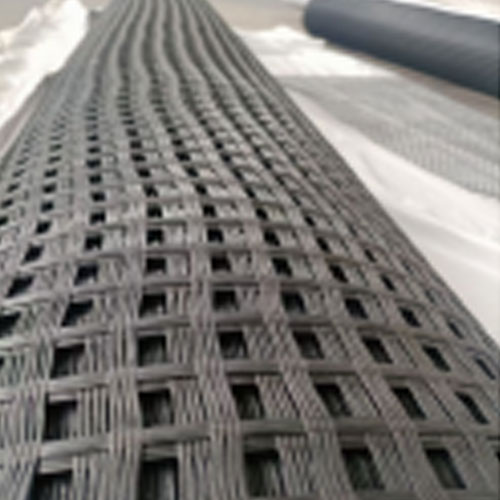

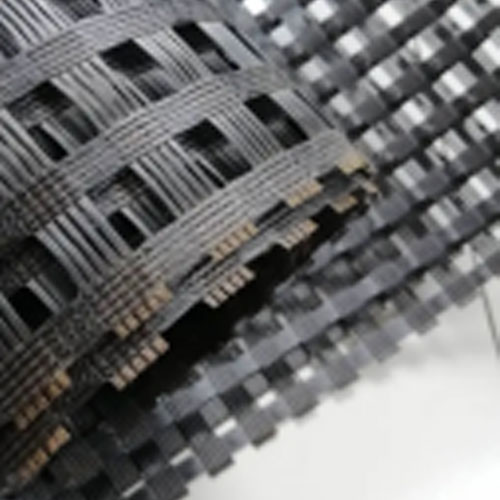

3. Fiberglass Geogrid is made from GQ alkali-free glass fiber, which is processed into a mesh base material through advanced international warp-knitting technology and then treated with surface coating to produce a semi-rigid product.
4. Fiberglass Geogrid features high tensile strength in both warp and weft directions, low elongation rate, and excellent properties such as high-temperature resistance, low-temperature resistance, aging resistance, and corrosion resistance.

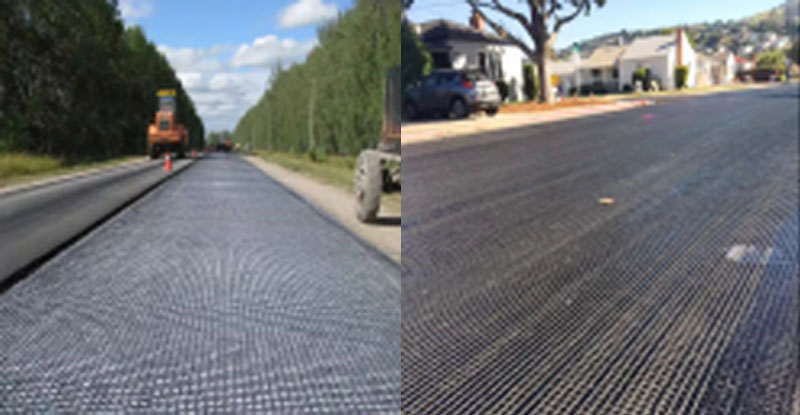

5. Fiberglass Geogrid is widely used in the reinforcement of asphalt and cement pavements, as well as in railway subgrades, embankment slopes, airport runways, and sand control and desertification prevention projects.
Product Parameters
| Model NO. | Fiberglass Geogrid | Color | Black |
| Application | Retaining Wall, Steep Slop, Dam, Road Base | Viscose | Without Viscose |
| Function | Anti-slip, Reinforcement | Classification | Plastic Geogrid |
| Material | Plastic | Length | 50m-100m |
| Width | 1m-6m | Certificate | CE/ISO9001 |
| Tensile Strength | 15kn/M–300kn/M | Elongation at Break | 13% Max |
| Production Capacity | 50000 Square Maters/ Day | Sample | Freely |
| Model Number | 25kn/M–300kn/M | Mesh Size (mm) | 12.7*12.7mm. 25.4*25.4mm |
| Package | PP Woven Bags | Coating | Bitumen,PVC |
| Usage | Road Construction | Breaking Elongation | 4% |
| Advantage | High Strength /Long Life Service | Transport Package | PP Plastic Geogrid Is Usually Packed by PP Woven B |
| Specification | 5.8m*100m | Trademark | EcoGeo |
| Origin | Shandong | HS Code | 3926909090 |
