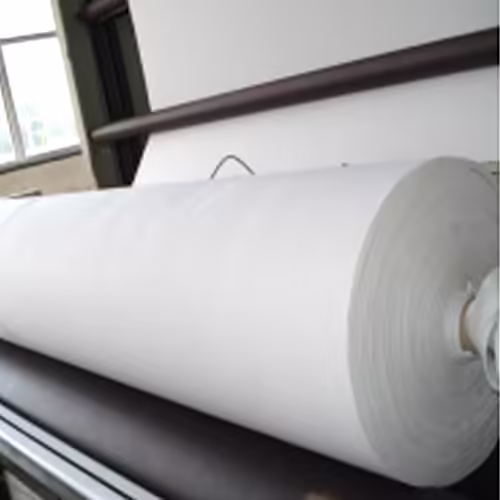

Staple Fiber Geotextile is made of high-quality polyester or polypropylene staple fibers through needle-punching and thermal bonding processes. It has excellent properties such as high tensile strength, good permeability, filtration, and separation performance.
Email
[email protected]
[email protected]
Whatsapp
+8617753163596
+8617753163596
Global Export Leader
80+ countries across Asia, Europe, Africa, and Americas trust our products for critical infrastructure projects
Certified Excellence
Fully certified with ISO9001, ISO14001, OHSAS18001, CE, GRI-GM13, REACH, ASTM, and SGS standards
Competitive Pricing
As direct manufacturers with in-house polymer production, we eliminate middlemen and offer 15-30% better pricing than trading companies.
Rapid Customization
48-hour sample production for custom specifications. We adapt to your project requirements including special dimensions and performance criteria.
| Model NO. | Staple Fiber Geotextile | Color | Customizable |
| Certification | CE ISO | Feature | Corrosion Resistance, Oxidation Resistance, Wear Resistance |
| Material | pp/pet | Kind | Non-woven |
| Width | 2m-6m (as Customrized) | Length | 30m, 100m or Customized |
| Weight | 100-800GSM | Standard | ASTM or customer requirements |
| Geotextile Type | Non-Woven Geotextiles | Transport Package | Inner Pipe + Outside Woven Bag or Film |
| Origin | China | Trademark | EcoGeo |
Product Feature
1.High Strength：Made from high-quality polyester or polypropylene short- fibers with good tensile strength and elongation.
2.Excellent Permeability：Uniform structure allows water to pass while preventing soil loss.
3.Superior Filtration & Drainage：Effectively retains soil particles while ensuring smooth drainage.
4.Separation：Prevents mixing of different soil layers and enhances stability.
5. Long Service Life：Resistant to acids, alkalis, corrosion, and microorganisms for use in harsh environments.
3.Superior Filtration & Drainage：Effectively retains soil particles while ensuring smooth drainage.
4.Separation：Prevents mixing of different soil layers and enhances stability.
5. Long Service Life：Resistant to acids, alkalis, corrosion, and microorganisms for use in harsh environments.
6.Easy Installation：Lightweight and flexible, easy to transport, install, and construct.
Product Details

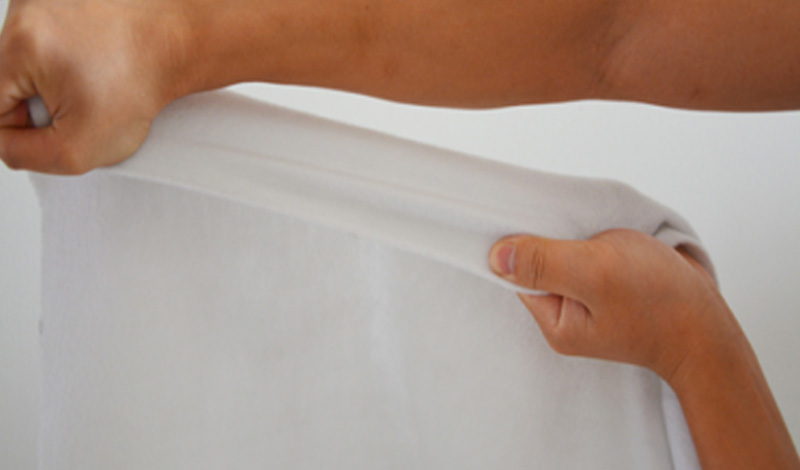

By virtue of the incorporation of plastic fibers, Staple Fiber Geotextile not only exhibits superior strength characteristics but also consistently retains exceptional strength and elongation performance in both dry and wet states.
Boasting superior water permeability, it features gaps between fibers, thereby exhibiting excellent water seepage performance.
Application Scenarios

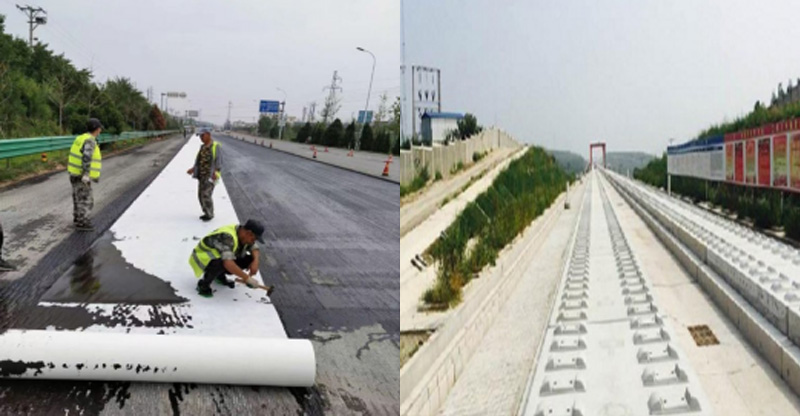

1. Roads & Railways：For subgrade reinforcement, soil separation, and improved load-bearing capacity.

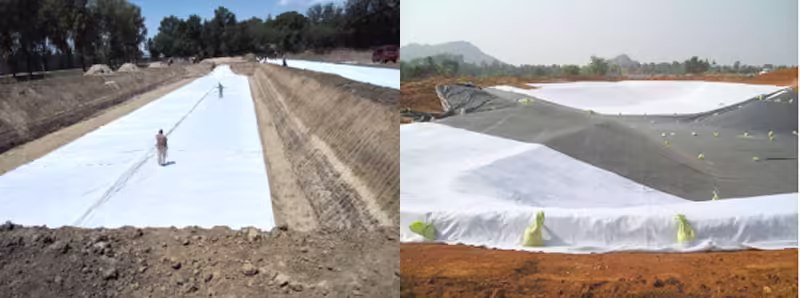

2.Environmental Protection：For landfill liners, drainage, and protection layers.

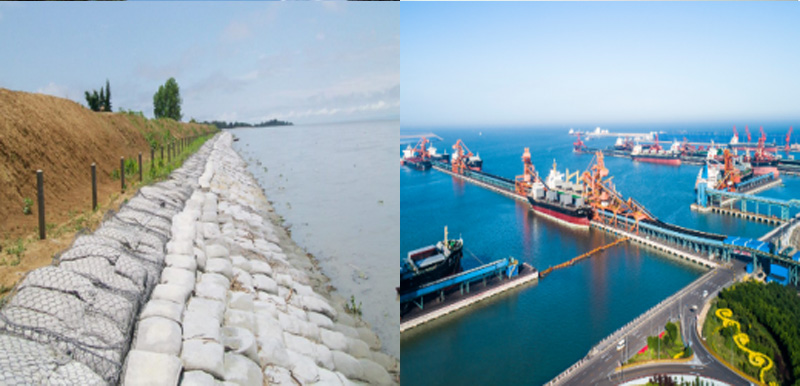

3.Coastal & Marine Works：For shoreline protection, anti-erosion, and foundation reinforcement.

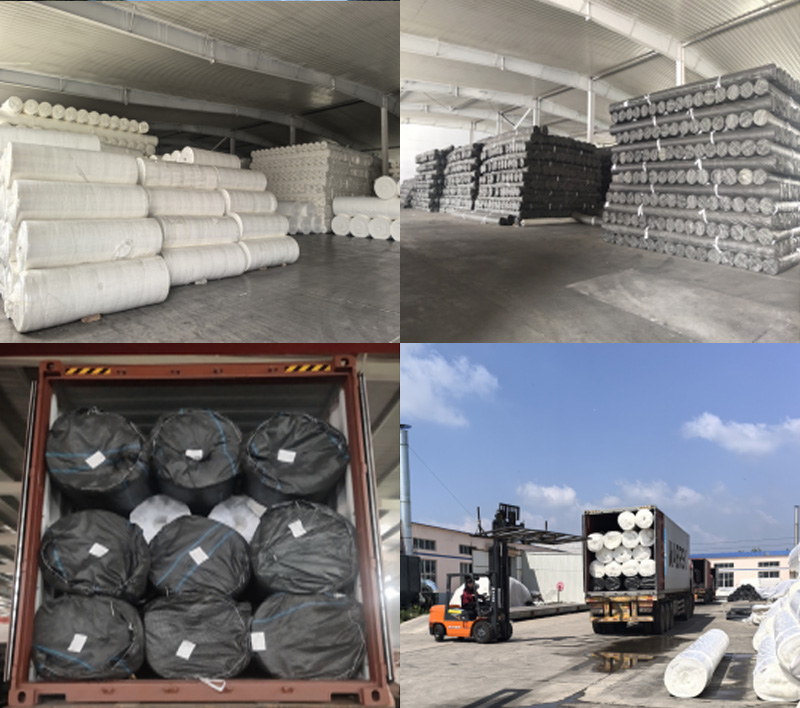

Packaging and delivery
Packaging unit: Rolled (width and length of each roll can be customized according to customer requirements)
Packaging method: plastic film, plastic woven bags, or packaging designed by the customer.
Packaging method: plastic film, plastic woven bags, or packaging designed by the customer.
FAQ
What is the core material of Staple Fiber Geotextile? What are the fundamental differences between it and Filament geotextile?
The core material of Staple Fiber Geotextile is polyester (PET) short fibres (length 20–50 mm) or polypropylene (PP) short fibres, which are combed into a web and then formed by needle punching to intertwine the fibres.
Key differences from filament geotextiles:
Fibre form: short fibres are cut into discrete fibres, while filament geotextiles are continuous fibres without joints.
Performance focus:Staple Fiber Geotextile have better permeability (more uniform pore distribution) and lower costs, but their tensile strength and tear resistance are slightly lower than those of filament geotextiles. filament geotextiles, on the other hand, have higher strength and are suitable for high-strength engineering projects.
Applicable scenarios: Short fibres are suitable for filtration, drainage, and general isolation scenarios; long fibres are suitable for reinforcement and high-stress engineering.
Which projects must use short fibres rather than long fibres?
Short fibres should be prioritised in the following scenarios: projects requiring high permeability (permeability rate≥10⁻²cm/s) and low strength requirements (such as agricultural water conservancy filtration, municipal green belt drainage, temporary construction access roads), or cost-sensitive projects.
What are the requirements for overlap width and seam methods when installing Staple Fiber Geotextile?
Overlap width: When manually laid, the overlap width for general applications is 10–15 cm; in high-water areas or areas prone to erosion (such as riverbank slopes), the overlap width must be≥20 cm, and sewing reinforcement may be required as needed.
Seam method: Staple Fiber Geotextile primarily use overlaps (due to their fibre-entangled structure, welding is ineffective). In high-strength requirement areas, nylon thread sewing can be used (stitch spacing 8–10 mm, row spacing 15–20 mm), with seam strength required to be≥70% of the base material's strength.
What are the base preparation and laying techniques for laying Staple Fiber Geotextile?
Base preparation:
Remove sharp debris (stones, glass, tree roots), with a flatness error of ≤5cm; loose bases must be compacted (compaction ≥90%) to avoid local subsidence and damage after installation.
Laying techniques:
Lay in the direction of water flow or force to avoid excessive stretching (allow for 1% slack);
After laying, temporarily secure with sandbags or soil to prevent wind displacement;
When connecting to surrounding structures (such as retaining walls), extend 10-15 cm into the structure and secure.
